Drainage Pumps
WSD8-7
WSD8-7 from the PumpCo WSD C & E Series range. 0.18 kW motor at 2850 rpm. Up to 7.1 m head and 6 m³/h flow.
Part of the WSD C & E Series range
- Power
- 0.18 kW (0.25 HP)
- Speed
- 2850 rpm
- Flow range
- 0–6 m³/h
- Head range
- 3.8–7.1 m
- Motor power
- 0.18 kW (0.25 HP)
- Curve speeds
- See curves
Performance
WSD8-7 at 2850 rpm · 2850 rpm · 50 Hz
| Q (m³/h) | 0 | 3 | 6 |
|---|---|---|---|
| H (m) | 7.1 | 6 | 3.8 |

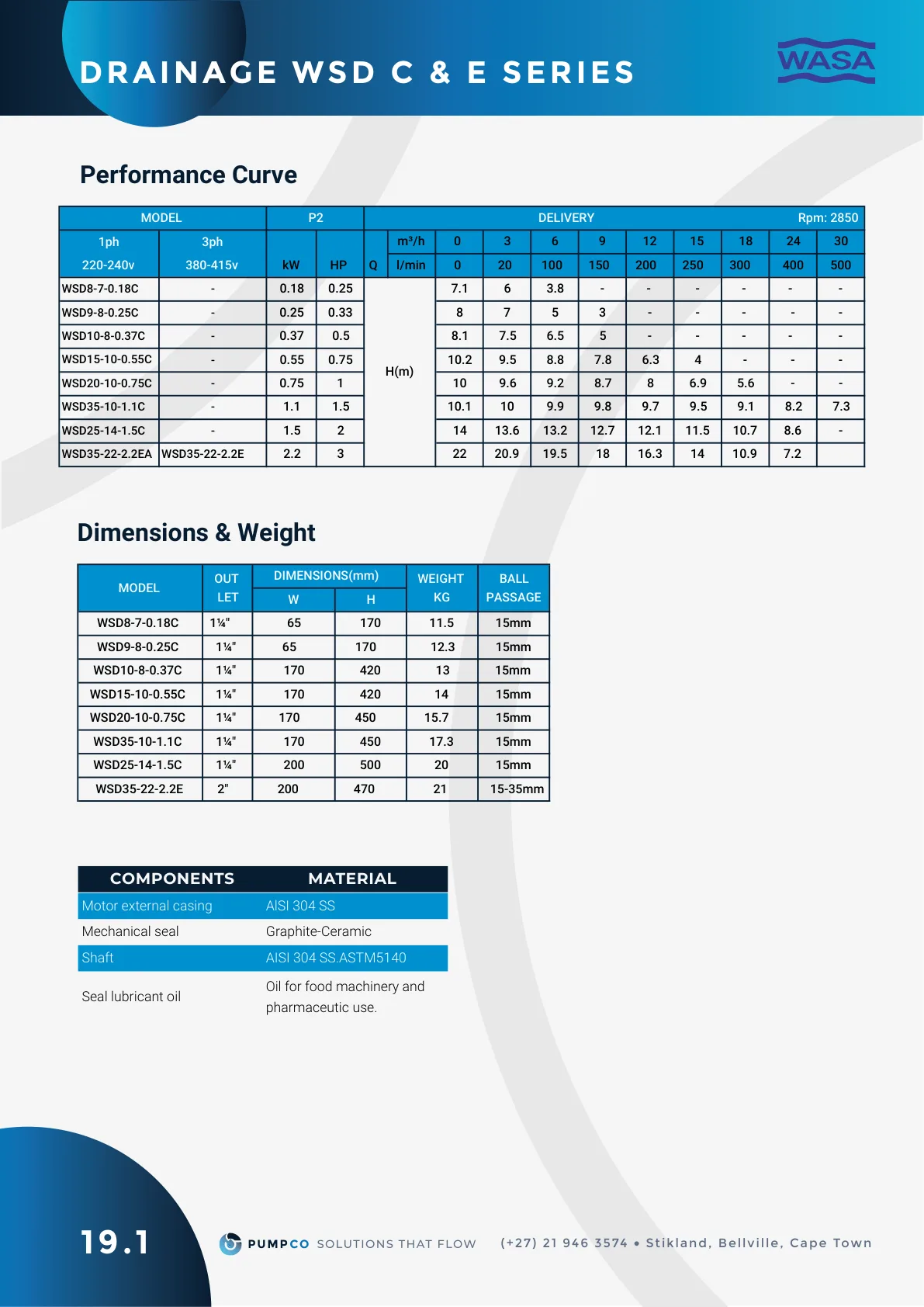

Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 0.18 kW (0.25 HP)
- Frequency
- 50 Hz
- Speed
- 2850 rpm
Dimensions
| Outlet | W (mm) | H (mm) | Ball passage | Weight (kg) |
|---|---|---|---|---|
| 1¼" | 65 | 170 | 15mm | 11.5 |
Curves & catalogue
Applications
- Rewindable motor
- Single-phase:220-240V/50Hz
- Three-phase:380-415V/50Hz
- Equipped with floating switch
- It can work in water containing fibre
- Curve tolerance according to ISO 9906
- Cast Iron Impeller
