6" Borehole Pumps
6SP18
6SP18 6" deep-well submersible pumps.
6SP deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for pressure boosters, firefighting systems, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
- Delivery
- Min: 6m³/h up to Max : 78m³/h
- Head
- Min: 18m up to Max: 385m
- Motor Size
- 6'' 380v - 3 Phase : 7.5kW up to 30kW
Choose a model
Specifications
- Speed
- 2850rpm
- Insulation class
- F
- Protection grade
- IP 68
- Maximum sand content
- 0.25%
- Minimum well diameter
- 6"
Applications
- Three-phase: 380-415V/50Hz
- ①Direct start (1 cable)
- ②Star-delta start (2 cables)
- Equip with start control box or digital auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 9906

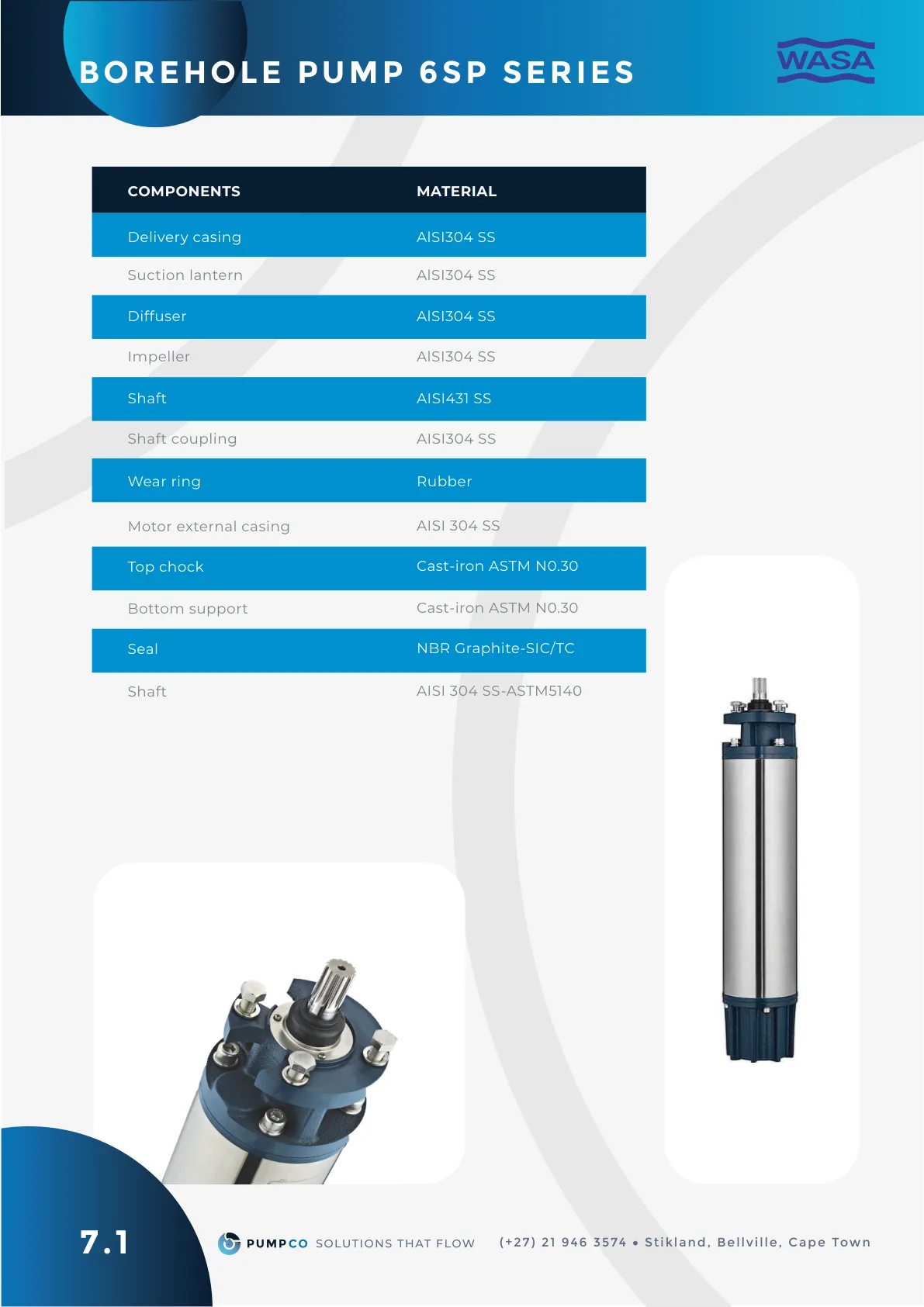

Catalogue
Need help sizing a 6SP18 pump?
Send your flow and head and we will recommend the right model.
