Domestic Pumps
SCM-4
SCM-4 from the PumpCo SCM Series range. 0.75 kW motor at 2850 rpm. Up to 51 m head and 4.2 m³/h flow.
Part of the SCM Series range
- Power
- 0.75 kW (1 HP)
- Speed
- 2850 rpm
- Flow range
- 0–4.2 m³/h
- Head range
- 31–51 m
- Motor power
- 0.75 kW (1 HP)
- Curve speeds
- See curves
- Maximum solid particle
- φ35mm
- Minimum well diameter
- 130mm
Performance
SCM-4 at 2850 rpm · 2850 rpm · 50 Hz
| Q (m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 |
|---|---|---|---|---|---|---|---|---|
| H (m) | 51 | 50 | 49 | 47 | 44 | 40 | 36 | 31 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 0.75 kW (1 HP)
- Frequency
- 50 Hz
- Speed
- 2850 rpm
Dimensions
| Outlet | W | H (mm) | Weight (kg) |
|---|---|---|---|
| 1¼" | 5'' | 550 | 15.8 |

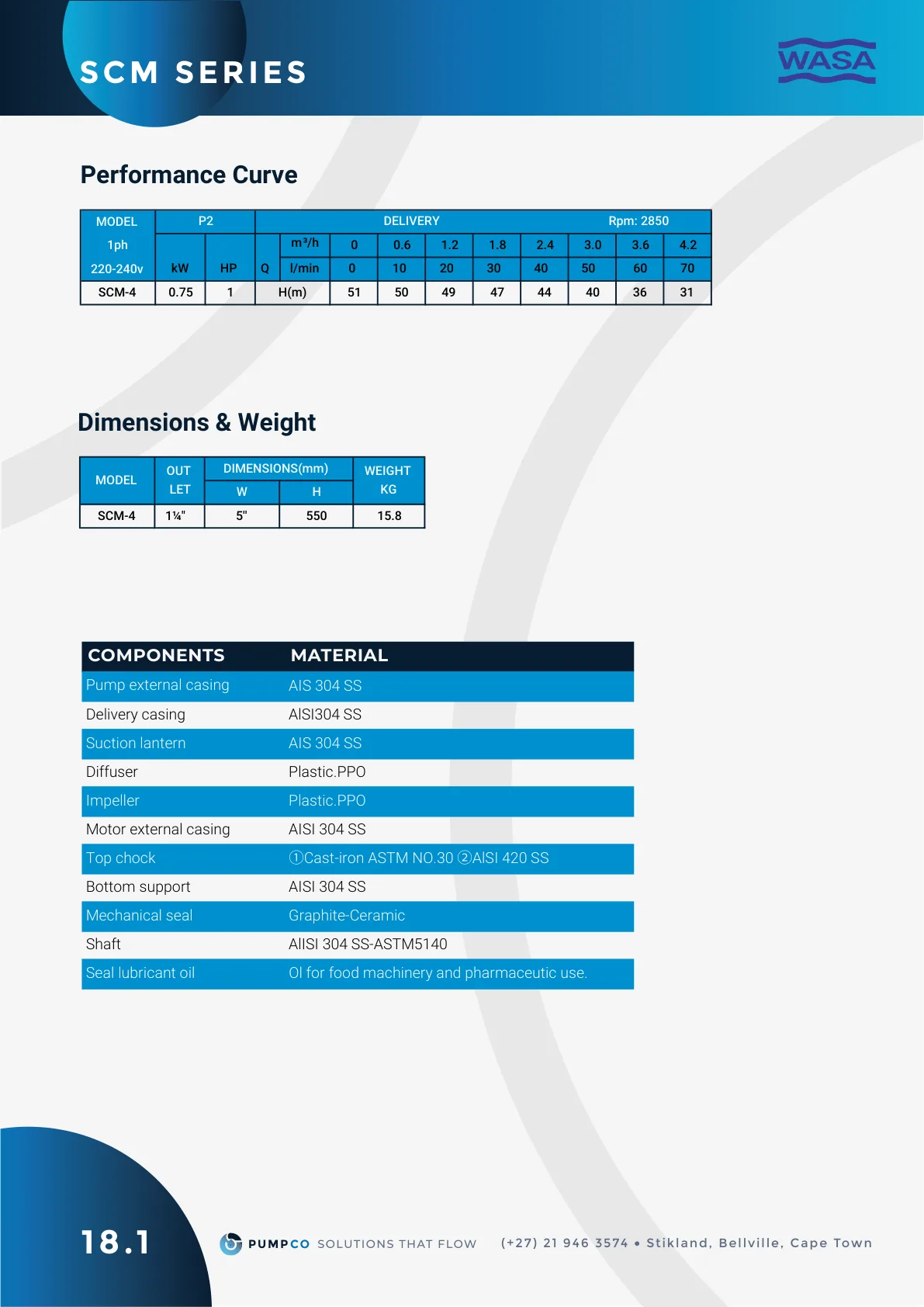

Curves & catalogue
Applications
- Rewindable motor
- Single-phase:220-240V/50Hz
- Equipped with start control box and float switch Curve tolerance according to ISO 9906
