Vertical Pumps
PVS 8-6
PVS 8-6 from the PumpCo PVS 8 range. 2.2 kW motor at 2900 rpm. Up to 62 m head and 12 m³/h flow.
Part of the PVS 8 range
- Power
- 2.2 kW (3 HP)
- Speed
- 2900 rpm
- Flow range
- 5–12 m³/h
- Head range
- 39–62 m
- Motor power
- 2.2 kW (3 HP)
- Discharge x suction (DN)
- 40 x 40
- Curve speeds
- 2850 rpm
Performance
PVS 8-6 at 2900 rpm · 2900 rpm · 50 Hz
| Q (m³/h) | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|---|---|
| H (m) | 62 | 60 | 57 | 54 | 51 | 48 | 43 | 39 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 2.2 kW (3 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| B1 (mm) | B (mm) | D1 (mm) | D2 (mm) | Weight (kg) |
|---|---|---|---|---|
| 477 | 767 | 190 | 155 | 45 |
Materials
| Part | Material |
|---|---|
| Motor | IP55 Class E |
| Base Plate | Cast iron |
| Pump Case | Cast iron |
| Inlet & Outlet Chamber | SS304 |
| Seal Base | SS304 |
| Bearing | Tungsten Carbide |
| Mechanical Seal | SS304 |
| Impeller | SS304 |
| Top Diffuser | SS304 |
| Shaft | SS304 |
| Diffuser | SS304 |
| Impeller Sleeve | SS304 |
| Support Diffuser | SS304 |
| Cylinder | SS304 |
| Inducer | SS304 |
| Coupling | Carbon Steel |

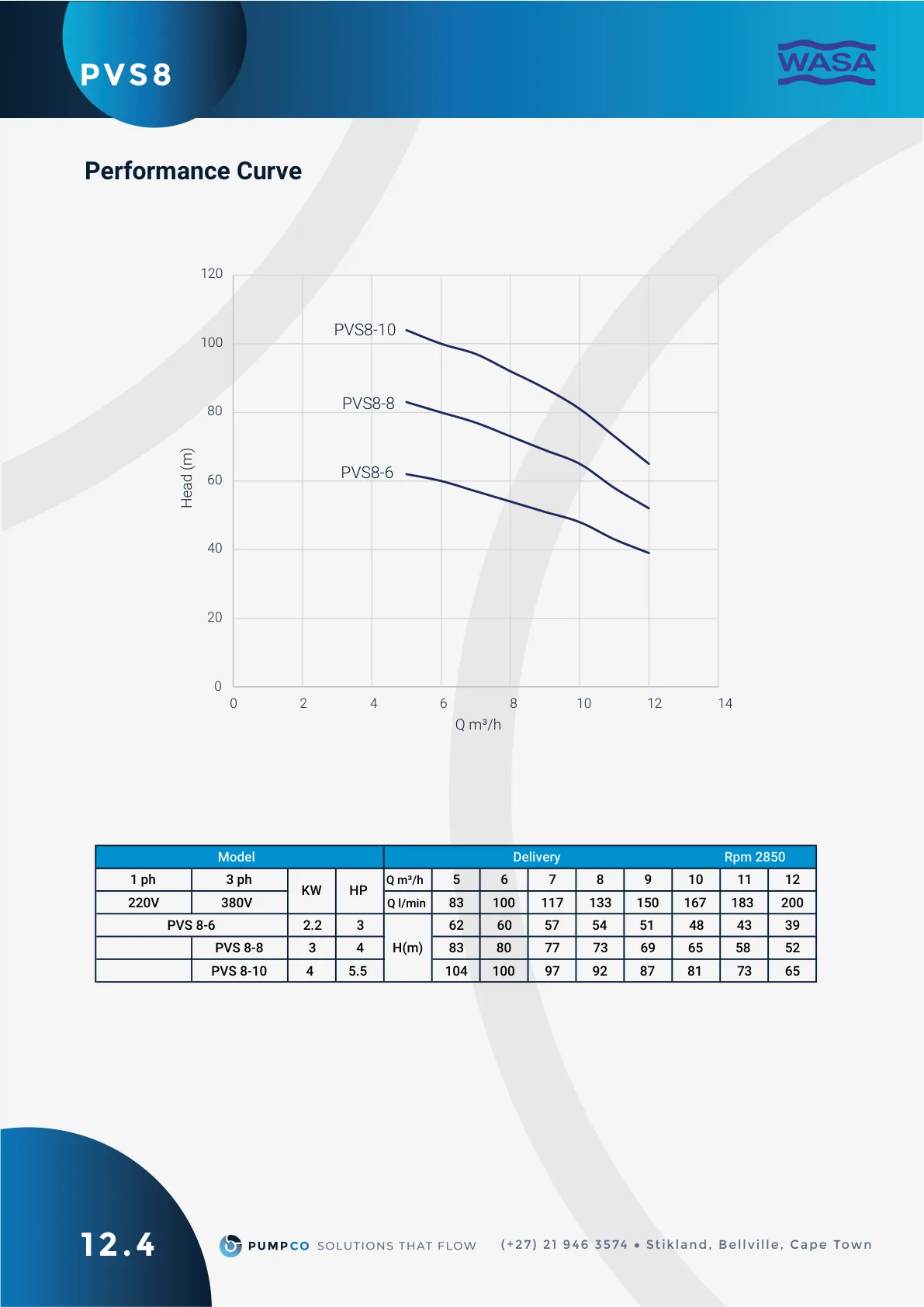

Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Suction and discharge ports are on the same level Pump impeller and shaft - Stainless steel
- Pump head and base are in cast iron
