Close Coupled End-Suction Pumps
MNW 65-200
MNW 65-200 from the PumpCo MNW 65 range. 19 kW motor at 2900 rpm. Up to 52.3 m head and 120 m³/h flow.
Part of the MNW 65 range
- Power
- 19 kW (25 HP)
- Speed
- 2900 rpm
- Flow range
- 0–120 m³/h
- Head range
- 42–64.8 m
- Motor power
- 19 kW (25 HP)
- Discharge x suction (DN)
- 80 x 65
- Motor options
- MNW 65-200/185 (19 kW); MNW 65-200/220 (22 kW)
- Curve speeds
- 2900 rpm
Performance
MNW 65-200/185 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 54 | 72 | 84 | 90 | 108 | 120 |
|---|---|---|---|---|---|---|---|
| H (m) | 52 | 52.3 | 51 | 49 | 48.2 | 44.5 | 42 |
MNW 65-200/220 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 54 | 72 | 84 | 90 | 108 | 120 |
|---|---|---|---|---|---|---|---|
| H (m) | 64.8 | 64.7 | 62 | 60 | 58.5 | 53 | 50 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 19 kW (25 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| f (mm) | Weight (kg) |
|---|---|
| 740 | 145–185 |

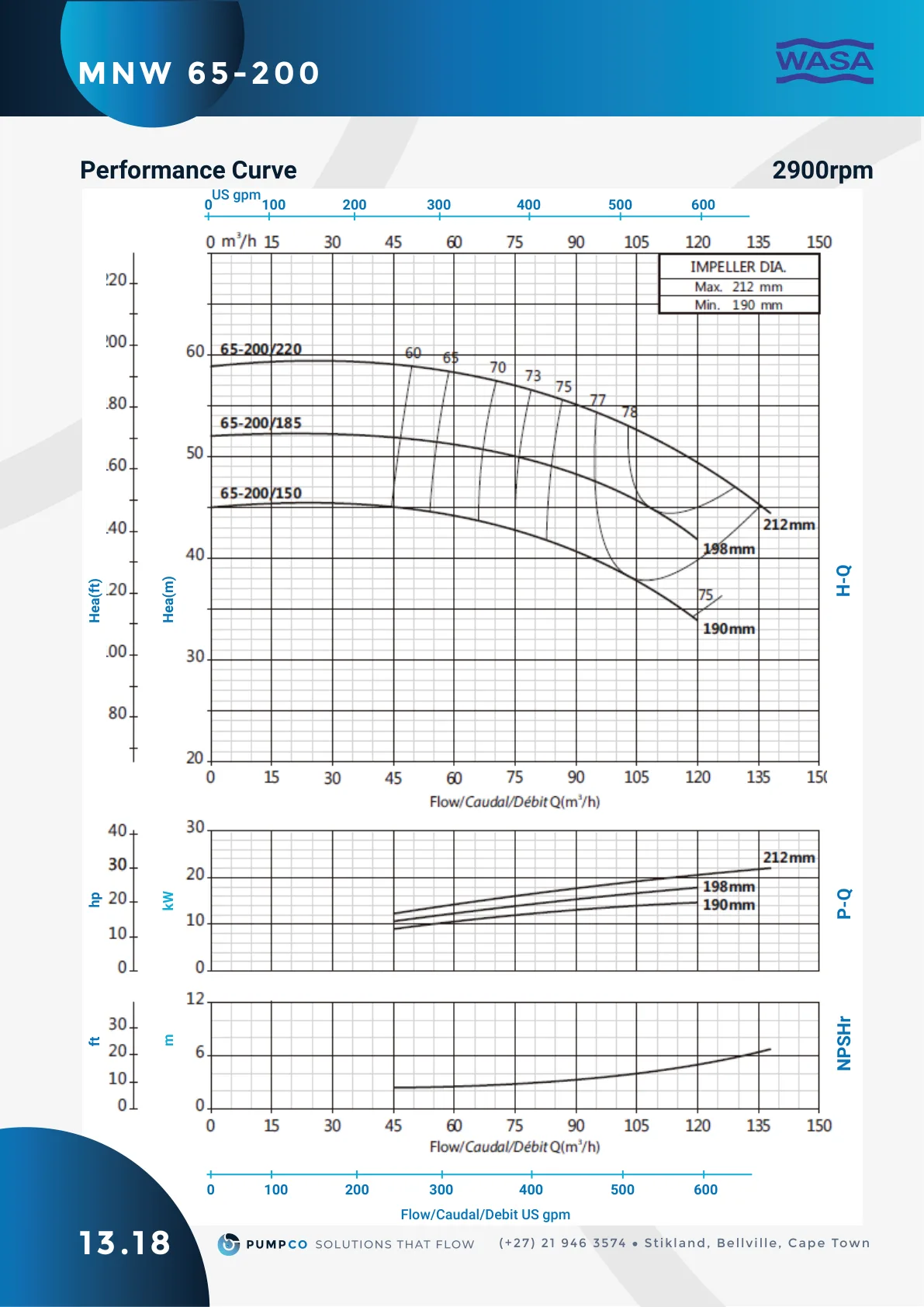

Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
