Close Coupled End-Suction Pumps
MNW 65-160
MNW 65-160 from the PumpCo MNW 65 range. 11 kW motor at 2900 rpm. Up to 36 m head and 120 m³/h flow.
Part of the MNW 65 range
- Power
- 11 kW (15 HP)
- Speed
- 2900 rpm
- Flow range
- 0–138 m³/h
- Head range
- 25.5–42 m
- Motor power
- 11 kW (15 HP)
- Discharge x suction (DN)
- 80 x 65
- Motor options
- MNW 65-160/110 (11 kW); MNW 65-160/150 (15 kW)
- Curve speeds
- 2900 rpm
Performance
MNW 65-160/110 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 54 | 72 | 84 | 90 | 108 | 120 |
|---|---|---|---|---|---|---|---|
| H (m) | 36 | 34.5 | 33 | 31.5 | 30.8 | 28 | 25.5 |
MNW 65-160/150 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 54 | 72 | 84 | 90 | 108 | 120 | 138 |
|---|---|---|---|---|---|---|---|---|
| H (m) | 42 | 41 | 40 | 38.5 | 37.8 | 35 | 33 | 29.5 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 11 kW (15 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| a (mm) | f (mm) | h (mm) | h1 (mm) | h2 (mm) | n (mm) | n1 (mm) | n2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 110 | 730 | 425 | 186 | 239 | 330 | 232 | 309 | 106 |

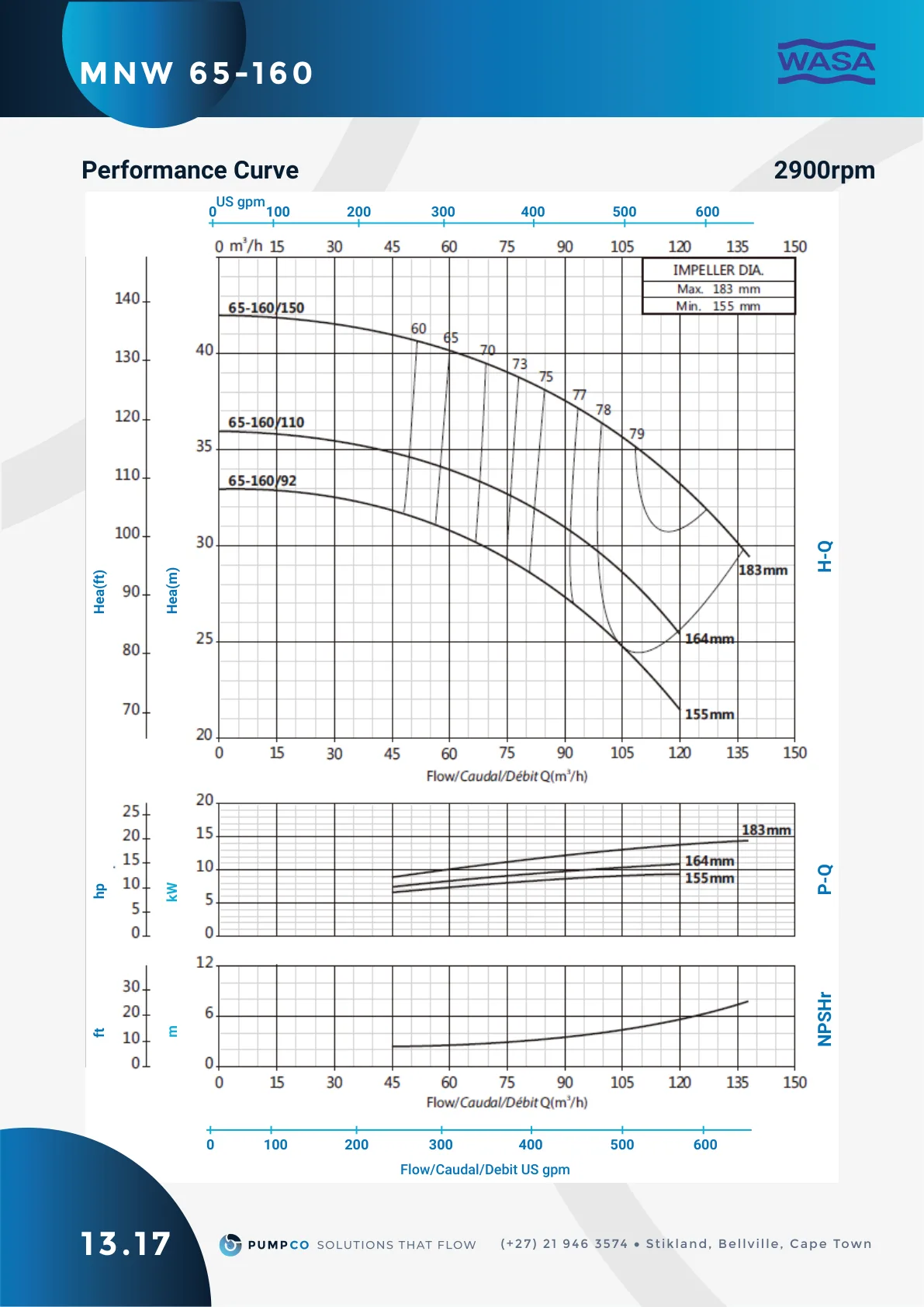

Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
