Close Coupled End-Suction Pumps
MNW 50-125
MNW 50-125 from the PumpCo MNW 50 range. 2.2 kW motor at 2900 rpm. Up to 17 m head and 72 m³/h flow.
Part of the MNW 50 range
- Power
- 2.2 kW (3 HP)
- Speed
- 2900 rpm
- Flow range
- 0–84 m³/h
- Head range
- 6.5–24 m
- Motor power
- 2.2 kW (3 HP)
- Discharge x suction (DN)
- 65 x 50
- Motor options
- MNW 50-125/22 (2.2 kW); MNW 50-125/40 (4 kW)
- Curve speeds
- 2900 rpm

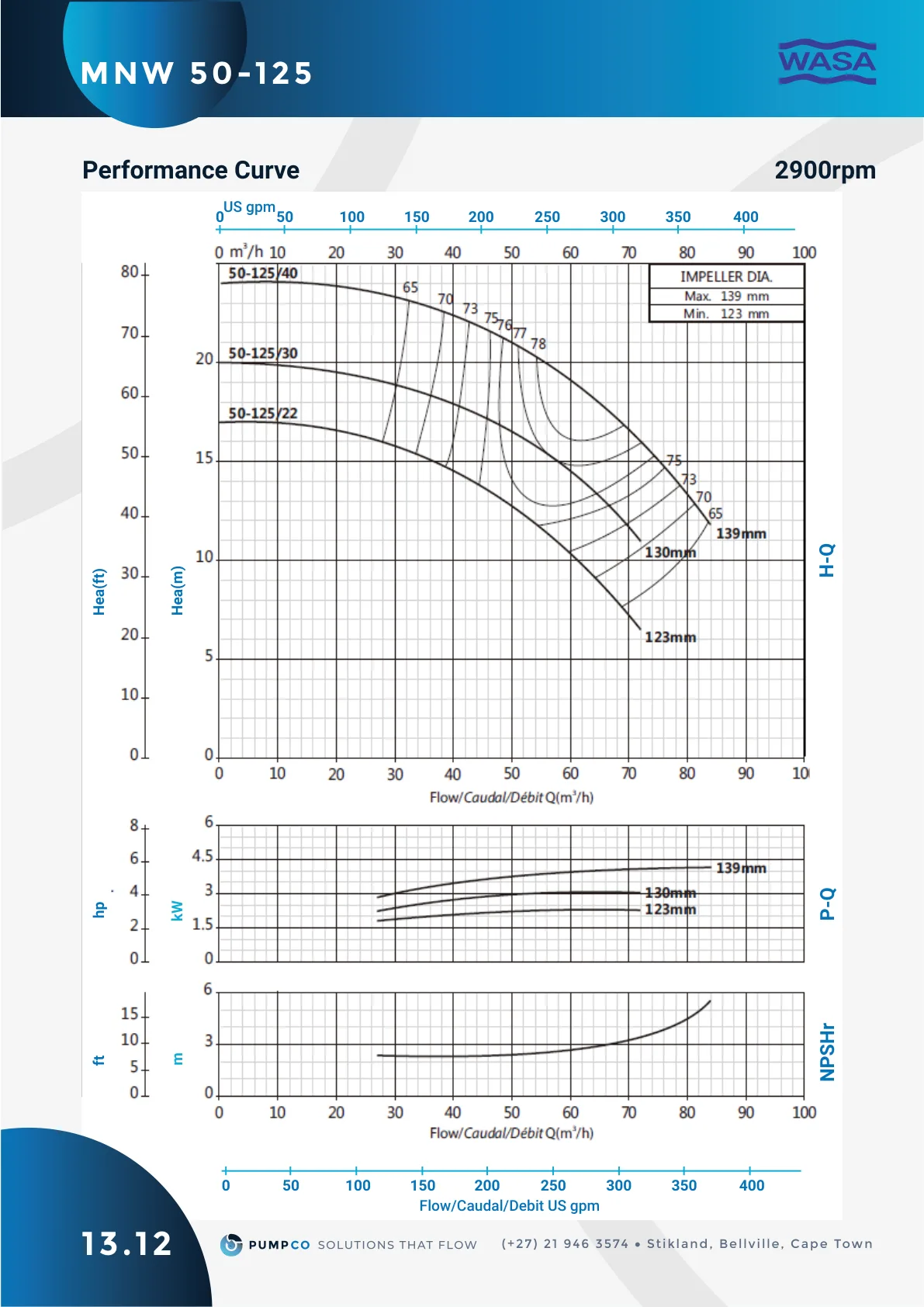

Performance
MNW 50-125/22 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 36 | 42 | 48 | 54 | 72 |
|---|---|---|---|---|---|---|
| H (m) | 17 | 15.4 | 14 | 12.8 | 11.5 | 6.5 |
MNW 50-125/40 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 36 | 42 | 48 | 54 | 72 | 84 |
|---|---|---|---|---|---|---|---|
| H (m) | 24 | 23.1 | 23 | 21.5 | 20.3 | 15.8 | 11.8 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 2.2 kW (3 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| DN2 (mm) | a (mm) | f (mm) | h (mm) | h1 (mm) | h2 (mm) | n (mm) | n1 (mm) | n2 (mm) | w1 (mm) | w2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 102 | 525 | 305 | 135 | 170 | 263 | 190 | 245 | 37 | 37 | 41 |
Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
