Close Coupled End-Suction Pumps
MNW 40-200
MNW 40-200 from the PumpCo MNW 40 range. 5.5 kW motor at 2900 rpm. Up to 46 m head and 42 m³/h flow.
Part of the MNW 40 range
- Power
- 5.5 kW (7.5 HP)
- Speed
- 2900 rpm
- Flow range
- 0–48 m³/h
- Head range
- 30–57 m
- Motor power
- 5.5 kW (7.5 HP)
- Discharge x suction (DN)
- 65 x 40
- Motor options
- MNW 40-200/55 (5.5 kW); MNW 40-200/75 (7.5 kW)
- Curve speeds
- 2900 rpm
Performance
MNW 40-200/55 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 18 | 24 | 27 | 36 | 42 |
|---|---|---|---|---|---|---|
| H (m) | 46 | 43.8 | 41.3 | 40.1 | 35 | 30 |
MNW 40-200/75 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 18 | 24 | 27 | 36 | 42 | 48 |
|---|---|---|---|---|---|---|---|
| H (m) | 57 | 53.6 | 51.5 | 50 | 45 | 41 | 36.5 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 5.5 kW (7.5 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| a (mm) | f (mm) | h (mm) | h1 (mm) | h2 (mm) | n (mm) | n1 (mm) | n2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 94 | 560 | 345 | 162 | 193 | 282 | 214 | 267 | 66–73 |

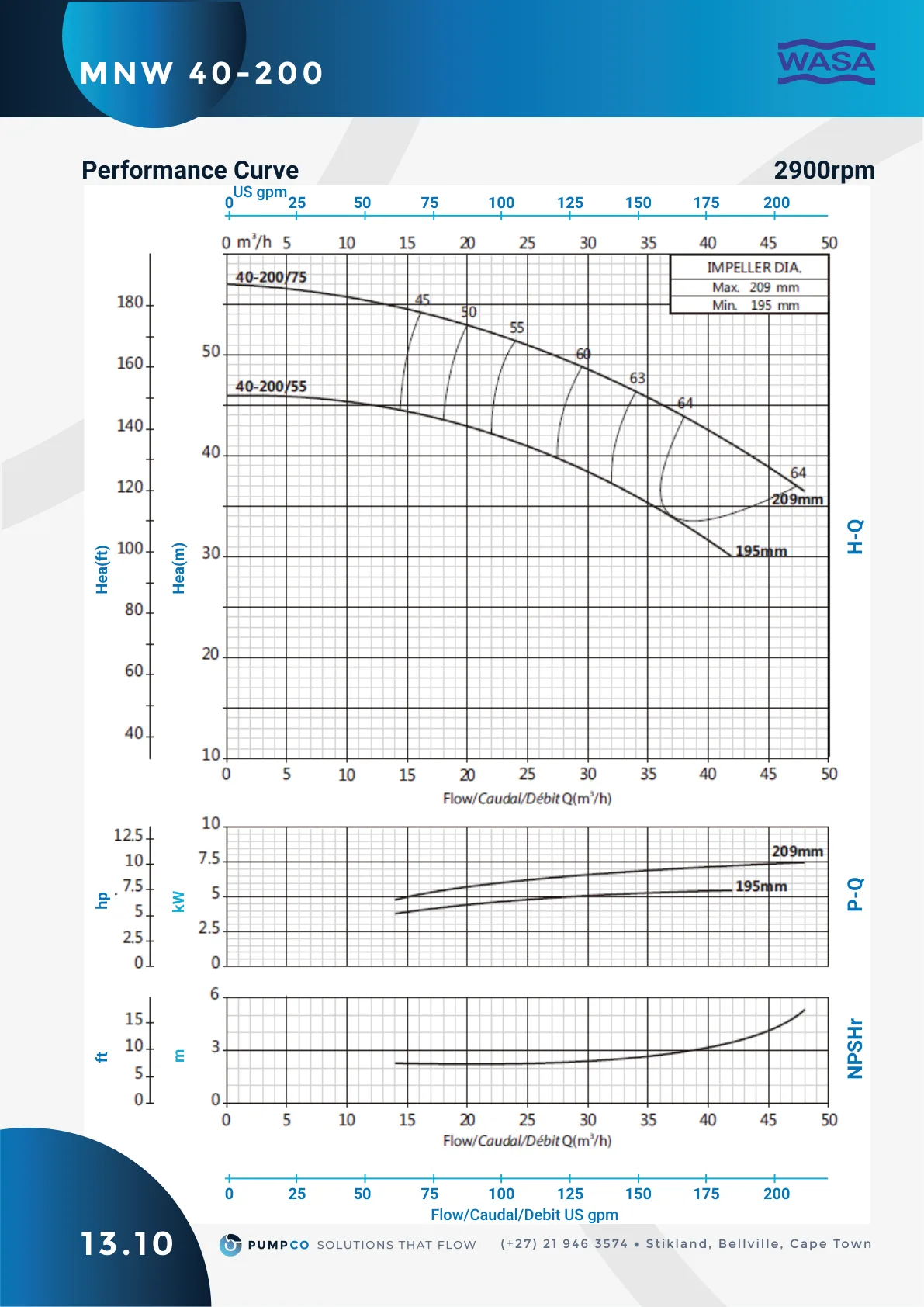

Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
