Close Coupled End-Suction Pumps
MNW 32-160
MNW 32-160 from the PumpCo MNW 32 range. 2.2 kW motor at 2900 rpm. Up to 31 m head and 24 m³/h flow.
Part of the MNW 32 range
- Power
- 2.2 kW (3 HP)
- Speed
- 2900 rpm
- Flow range
- 0–27 m³/h
- Head range
- 15–35 m
- Motor power
- 2.2 kW (3 HP)
- Discharge x suction (DN)
- 50 x 32
- Motor options
- MNW 32-160/22 (2.2 kW); MNW 32-160/30 (3 kW)
- Curve speeds
- 2900 rpm
Performance
MNW 32-160/22 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 6 | 18 | 24 |
|---|---|---|---|---|
| H (m) | 31 | 29.6 | 22 | 15 |
MNW 32-160/30 · 2900 rpm · 50 Hz
| Q (m³/h) | 0 | 6 | 18 | 24 | 27 |
|---|---|---|---|---|---|
| H (m) | 35 | 34.3 | 25.5 | 19 | 15 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 2.2 kW (3 HP)
- Frequency
- 50 Hz
- Speed
- 2900 rpm
Dimensions
| DN1 (mm) | DN2 (mm) | a (mm) | f (mm) | h (mm) | h1 (mm) | h2 (mm) | n (mm) | n1 (mm) | n2 (mm) | w1 (mm) | w2 (mm) | s (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 32 | 83 | 435 | 295 | 133 | 162 | 245 | 190 | 245 | 35 | 35 | 15 | 39 |

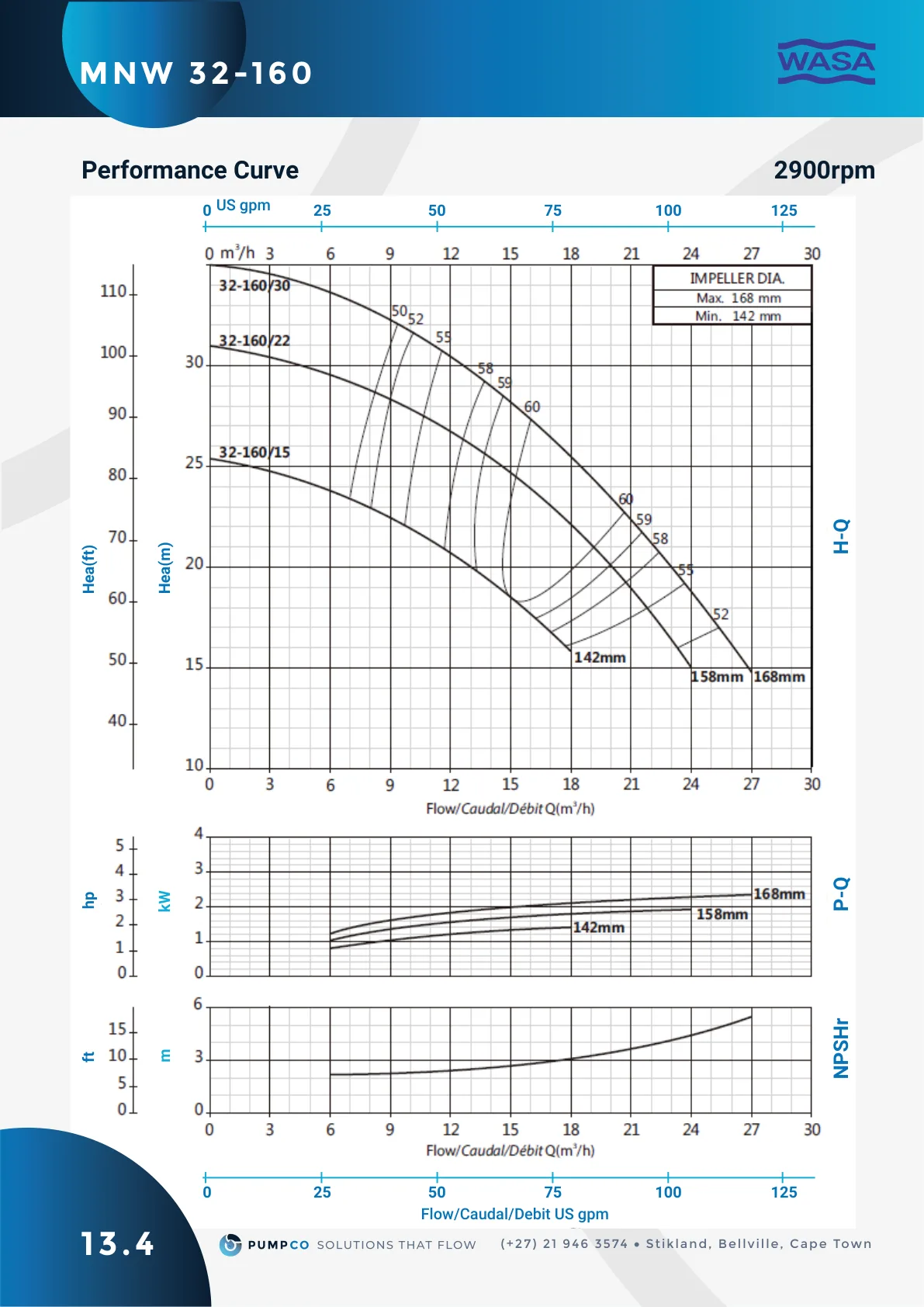

Curves & catalogue
Applications
- YE3 high efficient motor, with protection IP55 class F Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Galvanized counter flange with bolts, nuts and gaskets Quality NSK bearing, wear resistance mechanical seal
