Domestic Pumps
JSWM10H
JSWM10H from the PumpCo JSWM Series range. 0.75 kW motor at 2850 rpm. Up to 51 m head and 3 m³/h flow.
Part of the JSWM Series range
- Power
- 0.75 kW (1 HP)
- Speed
- 2850 rpm
- Flow range
- 0–3 m³/h
- Head range
- 22–51 m
- Motor power
- 0.75 kW (1 HP)
- Curve speeds
- See curves
- Maximum sand content
- 0.25%
- Maximum suction lift
- 9m
Performance
JSWM10H at 2850 rpm · 2850 rpm · 50 Hz
| Q (m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.8 | 2.4 | 3 |
|---|---|---|---|---|---|---|---|---|
| H (m) | 51 | 47.5 | 44 | 41 | 38 | 32 | 27 | 22 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 0.75 kW (1 HP)
- Frequency
- 50 Hz
- Speed
- 2850 rpm
Dimensions
| DN1 | DN2 | W (mm) | H (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1'' | 1'' | 180 | 208 | 417 | 16 |

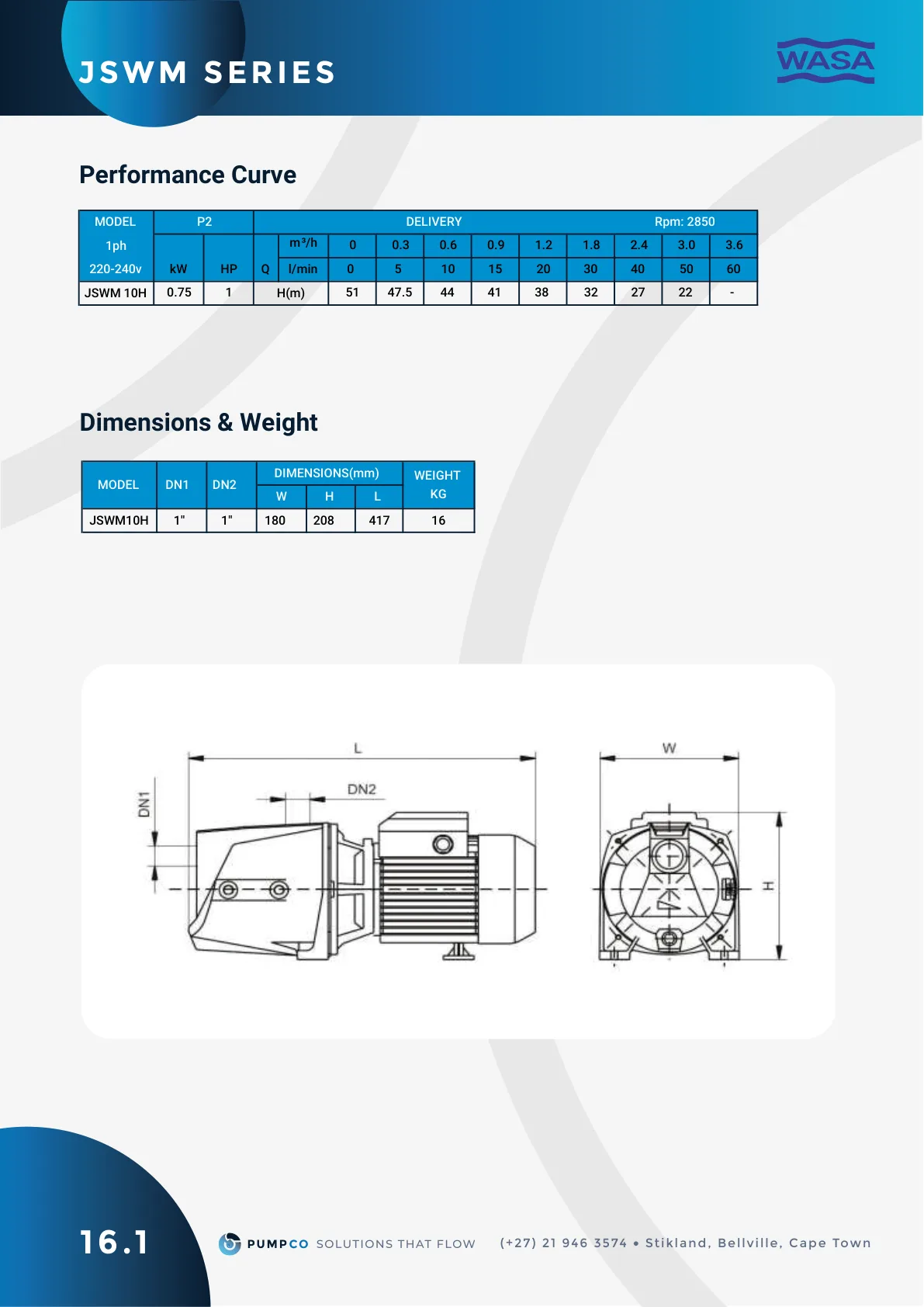

Curves & catalogue
Applications
- Rewindable motor Single-phase:
- 220-240V/50Hz
- Curve tolerance according to ISO 9906
- Impeller material: Brass
