Domestic Pumps
APM203
APM203 from the PumpCo APM Series range. 1.1 kW motor at 2850 rpm. Up to 50 m head and 4.2 m³/h flow.
Part of the APM Series range
- Power
- 1.1 kW (1.5 HP)
- Speed
- 2850 rpm
- Flow range
- 0–4.2 m³/h
- Head range
- 6–50 m
- Motor power
- 1.1 kW (1.5 HP)
- Curve speeds
- See curves
- Maximum sand content
- 0.25%
- Input voltage
- 160-260V
Performance
APM203 at 2850 rpm · 2850 rpm · 50 Hz
| Q (m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 |
|---|---|---|---|---|---|---|---|---|
| H (m) | 50 | 48 | 45 | 41 | 35 | 28 | 19 | 6 |

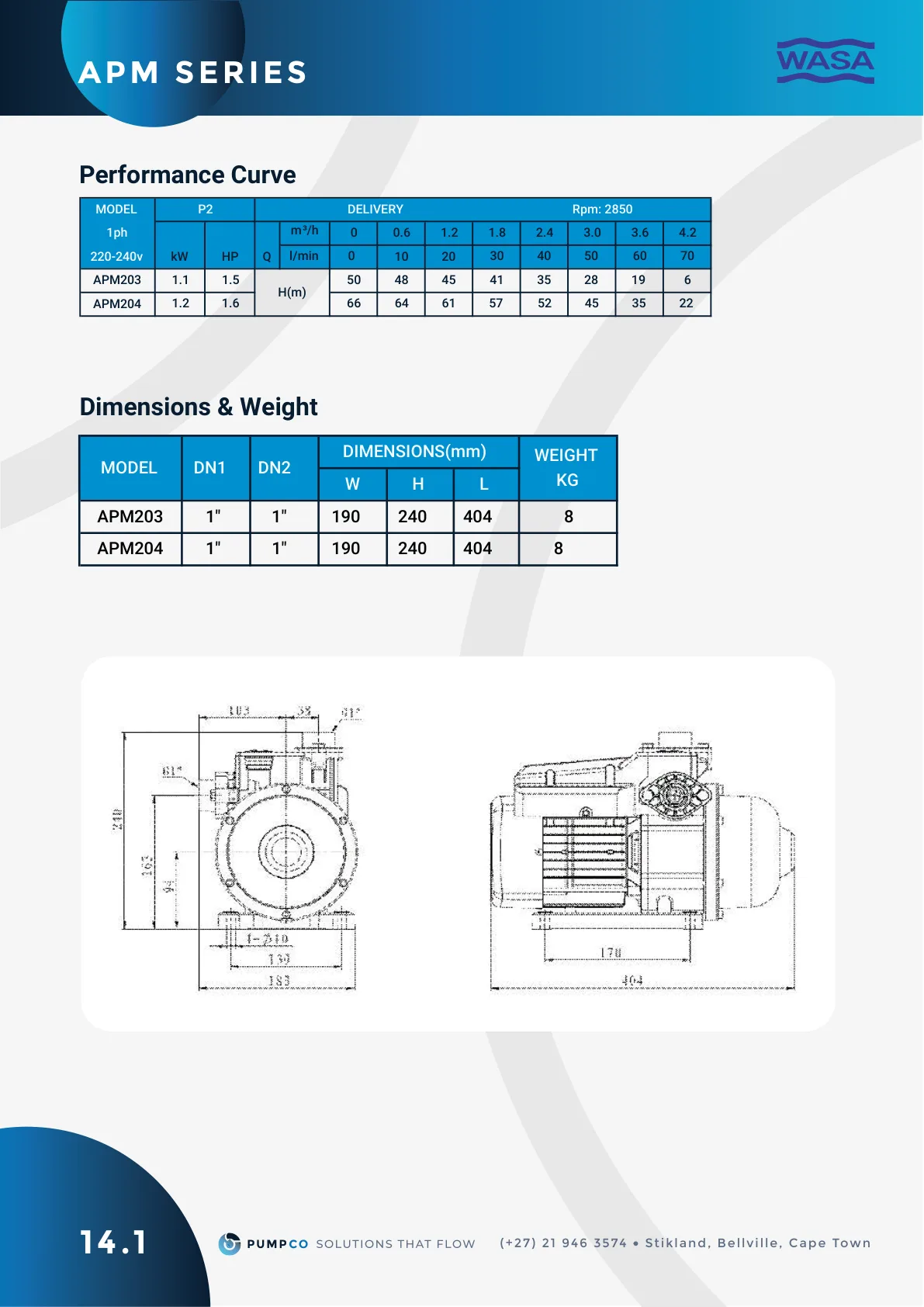

Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 1.1 kW (1.5 HP)
- Frequency
- 50 Hz
- Speed
- 2850 rpm
Dimensions
| DN1 | DN2 | W (mm) | H (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1" | 1" | 190 | 240 | 404 | 8 |
Curves & catalogue
Applications
- Rewindable motor
- Single-phase:220-240V/50Hz
- Curve tolerance according to ISO 9906
- Impeller material: PPO & Stainless Constant pressure
- Ultra-high energy efficiency
- Ultra-low power consumption
