6" Borehole Pumps
6SP-60-06
6SP-60-06 from the PumpCo 6SP60 range. 11 kW motor at 2850 rpm. Up to 84 m head and 66 m³/h flow.
Part of the 6SP60 range
- Power
- 11 kW (15 HP)
- Speed
- 2850 rpm
- Flow range
- 0–66 m³/h
- Head range
- 22–84 m
- Motor power
- 11 kW (15 HP)
- Curve speeds
- See curves
Performance
6SP-60-06 at 2850 rpm · 2850 rpm · 50 Hz
| Q (m³/h) | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 66 | 66 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H (m) | 84 | 84 | 83 | 82 | 78 | 72 | 66 | 62 | 40 | 58 | 53 | 47 | 31 | 22 |

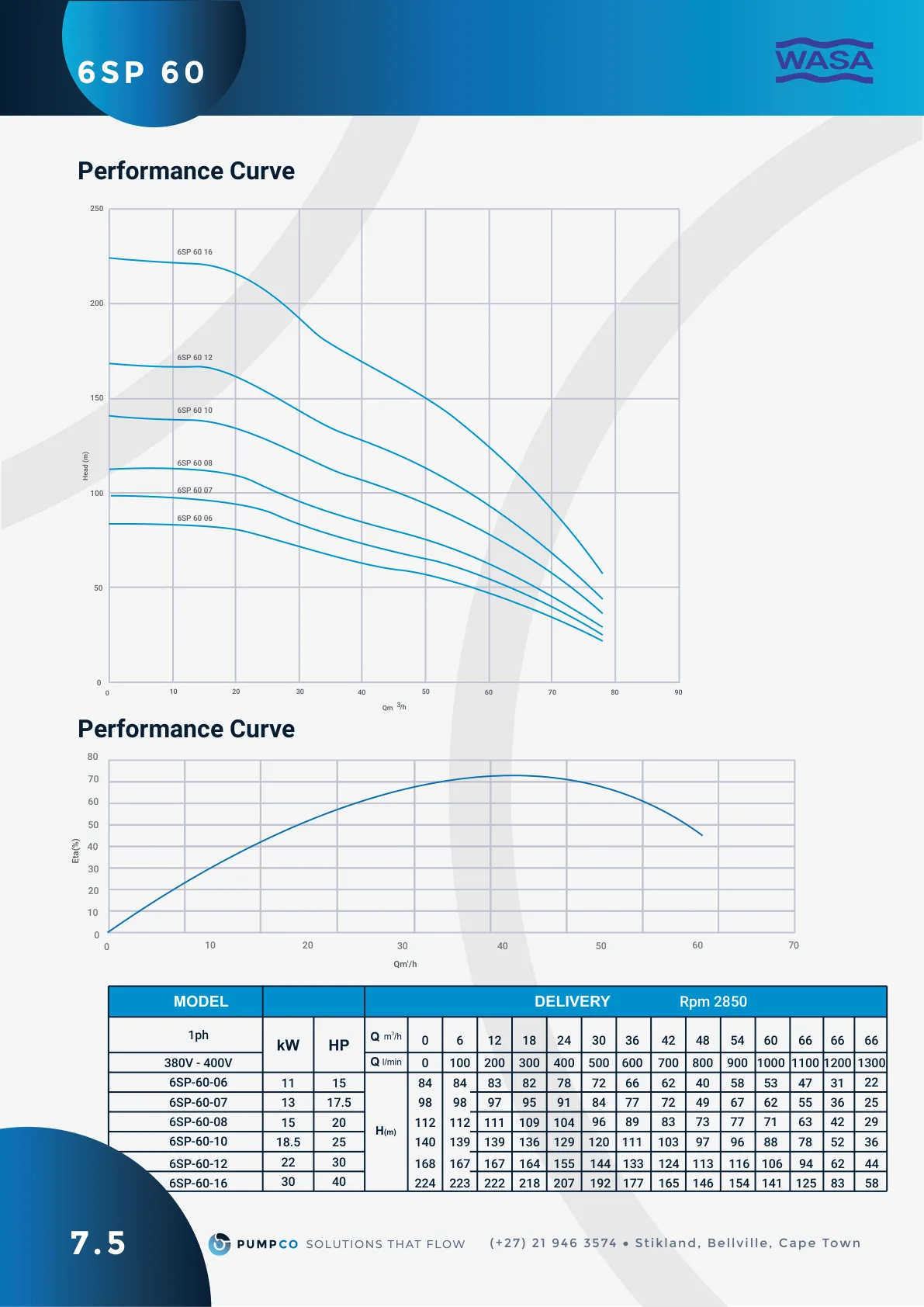

Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 11 kW (15 HP)
- Frequency
- 50 Hz
- Speed
- 2850 rpm
Duty limits
- Speed
- 2850rpm
- Insulation class
- F
- Protection grade
- IP 68
- Maximum sand content
- 0.25%
- Minimum well diameter
- 6"
Curves & catalogue
Applications
- Three-phase: 380-415V/50Hz
- ①Direct start (1 cable)
- ②Star-delta start (2 cables)
- Equip with start control box or digital auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 9906
