6" Borehole Pumps
6SP-46-06
6SP-46-06 from the PumpCo 6SP46 range. 9.2 kW motor at 2850 rpm. Up to 80 m head and 66 m³/h flow.
Part of the 6SP46 range
- Power
- 9.2 kW (12.5 HP)
- Speed
- 2850 rpm
- Flow range
- 0–66 m³/h
- Head range
- 22–80 m
- Motor power
- 9.2 kW (12.5 HP)
- Curve speeds
- See curves
Performance
6SP-46-06 at 2850 rpm · 2850 rpm · 50 Hz
| Q (m³/h) | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H (m) | 80 | 79 | 77 | 74 | 70 | 65 | 60 | 55 | 49 | 41 | 32 | 22 |
Duty points transcribed from the PumpCo catalogue performance table.
Electrical
- Power
- 9.2 kW (12.5 HP)
- Frequency
- 50 Hz
- Speed
- 2850 rpm
Duty limits
- Speed
- 2850rpm
- Insulation class
- F
- Protection grade
- IP 68
- Maximum sand content
- 0.25%
- Minimum well diameter
- 6"

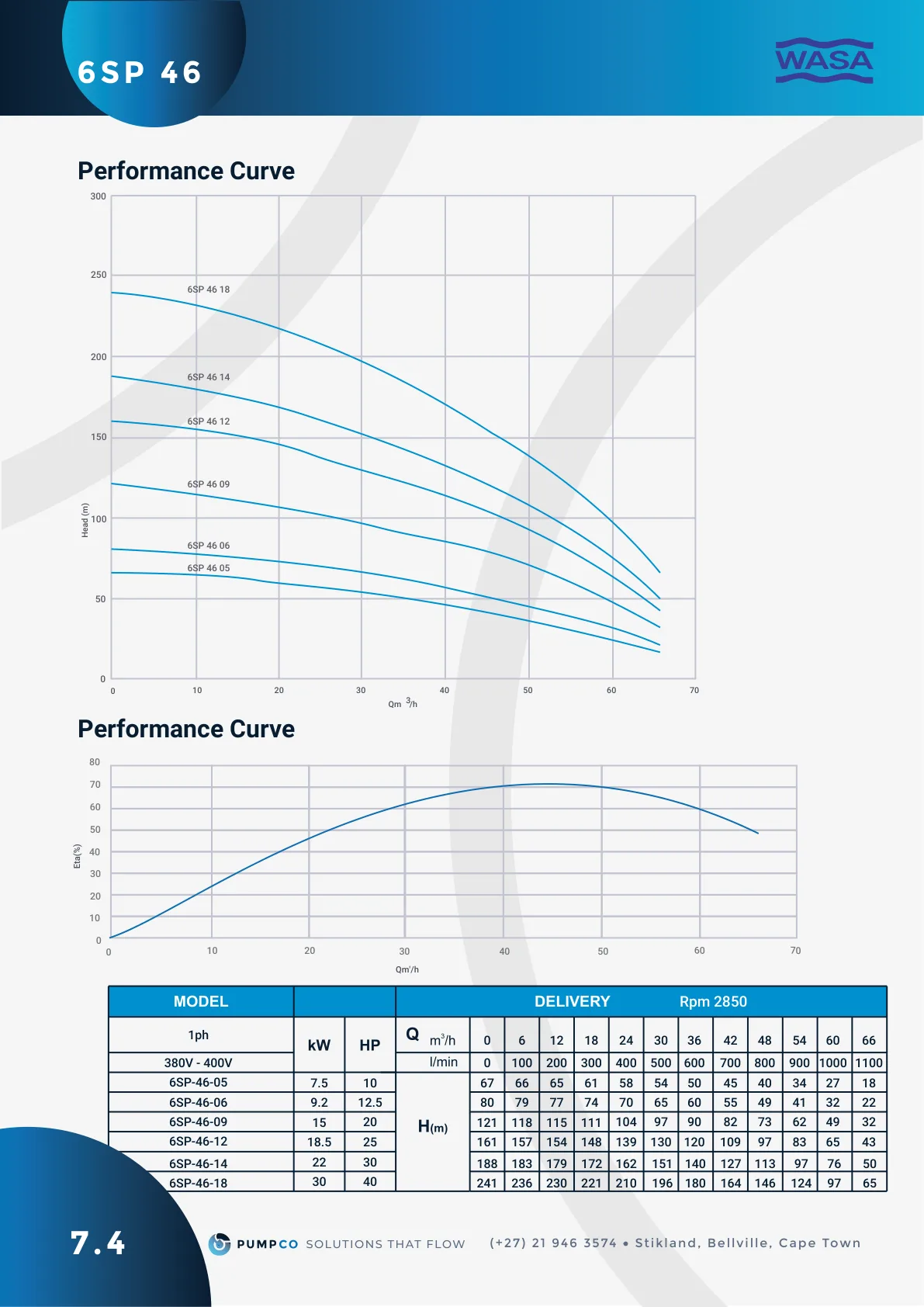

Curves & catalogue
Applications
- Three-phase: 380-415V/50Hz
- ①Direct start (1 cable)
- ②Star-delta start (2 cables)
- Equip with start control box or digital auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 9906
